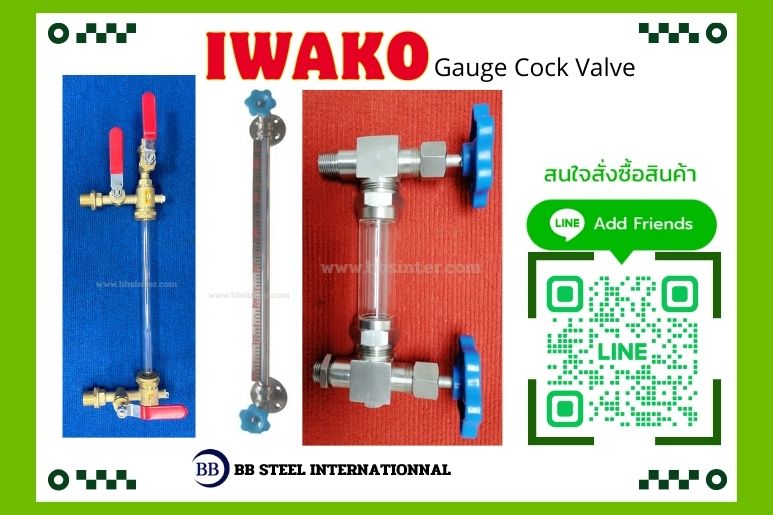

water liquid level gauge cock iwako

Water Liquid Level Gauge Cock “IWAKO”

Water Liquid Level Gauge Cock :  A Sight Glass Level Gauge functions as a direct visual reference of liquid level inside a vessel. In water service applications, its reliability does not depend on electronic measurement. Instead, it depends on mechanical alignment between the process vessel and the glass column.

However, the glass tube alone does not control the connection to the process. The functional integrity of a Sight Glass Level Gauge is determined by the Water Liquid Level Gauge Cock installed at the tapping points.

The gauge cock is an isolation valve mounted at the level tapping connection of a tank or pressure vessel. Its engineering role is not measurement generation. It does not produce numeric output. It controls the interface between:

  • The process fluid

  • The tube sight glass

  • The verification point

Because of this, the Sight Glass Level Gauge becomes a controllable system, not just a visual device.

The cause–effect relationship is direct:

If the isolation at the tapping point is stable → the level indication remains reliable.
If the isolation valve is incorrectly selected or improperly operated → leakage, incorrect level reading, or maintenance complications occur immediately.

In industrial systems, the Sight Glass Level Gauge must therefore be treated as a controlled mechanical interface, not a passive component.

Mechanical Configuration and Design Logic

The mechanical configuration of a Sight Glass Level Gauge system in water service includes:

  • Upper and lower tapping points

  • Gauge cock isolation valves

  • Tube sight glass

The gauge cock is installed on each tapping point. Its mechanical logic is based on three functions:

  1. Allow fluid to flow from the vessel to the inspection point.

  2. Isolate the tube sight glass from the vessel.

  3. Allow draining, air release, or blockage verification in actual operation.

The upper valve connects to the vapor space of the vessel.
The lower valve connects to the liquid space.

This configuration ensures that the liquid level inside the glass tube balances with the actual liquid level inside the tank. The gauge cock enables this equilibrium to be controlled.

The system logic is as follows:

  • When both upper and lower gauge cocks are open → the glass level reflects vessel level.

  • When isolation is required → either valve can be closed.

  • When maintenance is required → the glass can be separated without shutting down the entire process.

The gauge cock therefore determines whether the Sight Glass Level Gauge remains operational, isolated, or serviceable.

Without controlled isolation, the glass becomes a permanent open connection to the vessel, which increases operational risk.

Type Water Liquid Level Gauge Cock “IWAKO”

1.Stainless Steel Gauge Cock with Tube Sight Glass (Handwheel Type)

Engineering advantages:

  • High corrosion resistance.

  • Suitable for high-conductivity water.

  • Suitable for water containing chemical presence.

  • Stable under pressure conditions.

  • Better suited for hot water systems.

  • Handles thermal cycling more effectively than brass.

Handwheel operation allows gradual opening. This reduces hydraulic shock and minimizes impact on the glass tube.

Cause–effect:

Gradual torque-controlled opening → reduced water hammer → reduced stress on glass tube.

This configuration is aligned with:

  • Process tanks

  • Pressurized systems

  • Applications where downtime has high cost

  • Systems requiring long-term structural stability.

2.Brass Gauge Cock with Tube Sight Glass (Lever Type)

Engineering advantages:

  • Rapid full open/full close actuation.

  • Clear visual valve position.

  • Suitable for clean water.

  • Suitable for municipal-type water systems.

  • Suitable for low to medium pressure conditions.

  • Lightweight structure.

Lever actuation supports quick level verification.

Cause–effect:

Quick actuation → faster operator confirmation → suitable for routine inspection in non-severe conditions.

This configuration aligns with:

  • Utility systems

  • Storage tanks

  • Low-temperature service

  • Applications prioritizing cost control.

Selection must follow system logic:

Select Stainless Steel Gauge Cock (Handwheel Type) if:

Process system.

Elevated temperature.

Pressure vessel.

Corrosive environment.

Long-term structural reliability required.

Select Brass Gauge Cock (Lever Type) if:

  • Clean water service.

  • Low to medium pressure.

  • Utility system.

  • Quick verification required.

  • Temperature is not high.



The decision must align material strength, operating condition, and actuation method with actual system demand.

The Sight Glass Level Gauge is not selected based on appearance or cost alone. It must match:

  • Fluid condition.
  • Pressure condition.
  • Thermal behavior.
  • Maintenance access requirement.

If these parameters are aligned correctly, the system remains mechanically stable and operationally predictable.
