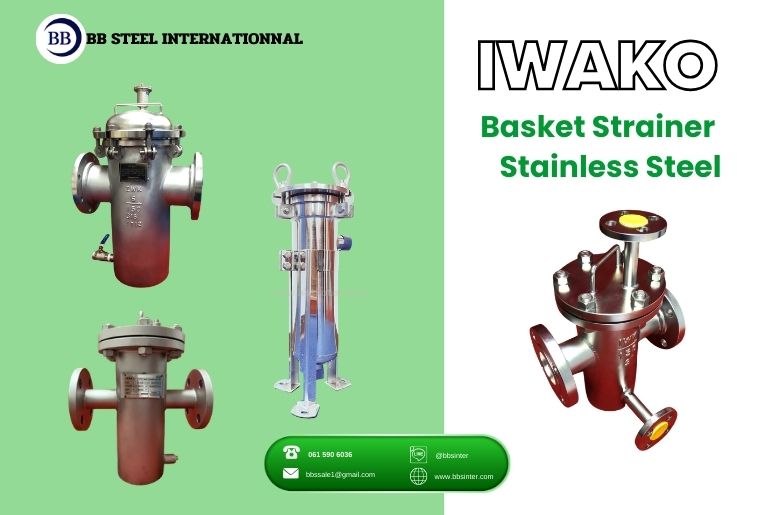

stainless steel basket strainer industry

Stainless Steel Basket Strainer Industry “IWAKO”

Stainless Steel Basket Strainer Industry “IWAKO” : A basket strainer stainless steel unit is a filtration device installed in a piping system to remove solid particles from process fluid. It uses a removable basket screen housed inside a pressure-retaining body.



1. Basic Specification of Basket Strainer Stainless Steel

When specifying a basket strainer stainless steel unit, the following technical parameters define the equipment.

1.1 Construction Material   A stainless steel configuration may include:

  • Stainless steel body and cover

  • Stainless steel basket or screen

  • Stainless steel bolting and internal components

Material selection must be defined clearly. In some applications, only the basket is stainless steel. In others, the entire assembly is stainless steel.

1.2 Pressure Rating  The body must withstand the system’s maximum operating pressure. Pressure rating must be compatible with:

  • Line pressure

  • Temperature conditions

  • Mechanical loads during operation

1.3 Temperature Rating  Operating temperature directly affects material strength and sealing performance. The specified temperature range must match process conditions.

1.4 Filtration Degree  The basket screen defines particle retention capability. Common screen configurations include:

  • Perforated plate

  • Perforated plate with mesh lining

  • Wedge wire construction

Filtration selection depends on required particle size retention.

1.5 Connection Type   Basket strainer stainless steel units may use:

  • Flanged connections

  • Threaded connections

Connection selection must align with pipeline design and pressure class.

1.6 Basket Structure  Engineering evaluation includes:

  • Structural rigidity

  • Support ring design

  • Proper seating within the body to prevent bypass

The basket must withstand differential pressure without deformation.

2. Advantages of Basket Strainer Stainless Steel

2.1 Corrosion Resistance    Stainless steel offers resistance to corrosion in various industrial environments.  It performs effectively in applications involving:

  • Water systems

  • Certain chemical services

  • Chloride-containing fluids

  • Moist or outdoor installations

This reduces the risk of internal material degradation that can compromise sealing surfaces or structural integrity.

2.2 Reduced Contamination Risk   In processes where contamination must be controlled, stainless steel minimizes the risk of rust or scale detachment from internal surfaces.  This is critical in applications where downstream equipment must remain free from metallic debris.

2.3 Durability Under Repeated Maintenance   Basket strainers require periodic opening for cleaning. Stainless steel construction improves resistance to:

  • Surface wear

  • Thread damage

  • Corrosion at gasket seating areas

This supports long-term mechanical reliability during repeated maintenance cycles.

2.4 Structural Stability   Stainless steel provides mechanical strength suitable for pressurized systems.   When properly designed, the body and basket maintain dimensional stability under operating pressure and differential pressure loads.

3. Benefits in Industrial Operation

From a system perspective, basket strainer stainless steel units provide measurable operational benefits.

3.1 Protection of Downstream Equipment  By removing solid particles, the strainer protects:

  • Pumps

  • Control valves

  • Flow meters

  • Heat exchangers

  • Spray nozzles

This reduces the risk of blockage, erosion, and performance instability.

3.2 Predictable Pressure Behavior  As solids accumulate, differential pressure increases in a predictable manner.  This allows maintenance teams to monitor system performance and schedule cleaning before flow performance is affected.

3.3 Service Life in Corrosive Environments   In corrosive service conditions, stainless steel construction reduces deterioration compared to non-resistant materials.  This supports longer service intervals and stable sealing performance.

4. Suitable Fluid Applications

Basket strainer stainless steel units are appropriate for fluid services where corrosion resistance and contamination control are important.

4.1 Water Systems

Applicable in:

  • Process water

  • Cooling water

  • Industrial water supply

Particularly beneficial when corrosion risk exists due to dissolved salts or environmental exposure.

4.2 Chemical Fluids

Used in selected chemical services where stainless steel compatibility is suitable for the specific fluid.

Material grade must match chemical properties to ensure long-term resistance.

4.3 Chloride-Containing Fluids

Chloride presence increases corrosion risk. Stainless steel selection must consider exposure level and operating temperature.

4.4 Oil and Hydrocarbon Systems

Applicable where contamination control and mechanical protection of equipment are required.

4.5 Condensate and Elevated Temperature Fluids

In systems involving condensate or elevated temperatures, stainless steel construction supports resistance to corrosion associated with moisture and thermal cycling.

5. Installation Considerations

Basket strainer stainless steel units are commonly installed:

  • Upstream of pumps

  • Before control valves

  • Before measurement devices

  • Prior to heat exchangers

Installation must allow sufficient clearance for:

  • Cover removal

  • Basket extraction

  • Safe maintenance access

Drain and vent provisions should be included where required to ensure safe depressurization before opening.

Summary

A basket strainer stainless steel unit is defined by material integrity, filtration capability, and mechanical reliability under pressure.

Its specification must include:

  • Material scope (body, basket, bolting)

  • Pressure and temperature ratings

  • Filtration degree

  • Flow rate and allowable differential pressure

  • Maintenance conditions

When correctly specified, it provides corrosion resistance, contamination control, and stable protection of downstream equipment across industrial fluid systems.

For systems that cannot tolerate shutdown during cleaning, technical evaluation may extend to:

  • Industrial Basket Strainer “IWAKO”

  • Basket Strainer Carbon Steel

  • Basket Strainer Stainless Steel

Discussion should be based on actual fluid conditions, operating pressure, and maintenance constraints.
