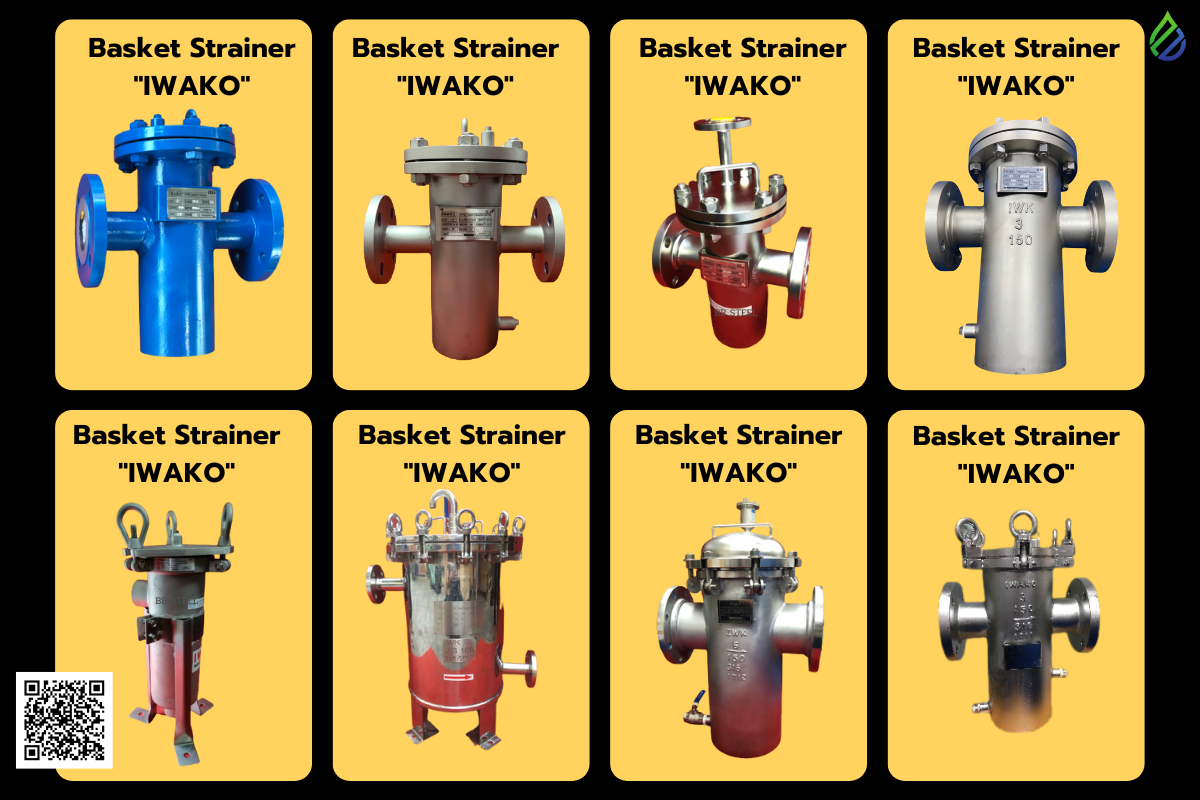

Basket Strainer Manufacturers in Thailand
Basket Strainer Manufacturers in Thailand : A Basket Strainer is a pressure-containing filtration device installed in pipeline systems to remove solid contaminants from liquid flow. It is primarily used to protect downstream mechanical equipment such as pumps, valves, meters, and heat exchangers.
Basket Strainer Basic Construction
A typical basket strainer consists of:
1. Pressure-Retaining Body
-
Fabricated carbon steel or stainless steel
-
Flanged inlet and outlet connection
-
Designed according to specified pressure class
2. Removable Internal Basket
-
Perforated metal cylinder or screen
-
Optional mesh lining for finer retention
-
Reinforced top ring for structural stability
3. Bolted Cover with Gasket
-
Allows access for cleaning
-
Ensures sealing during operation
4. Drain Connection
-
Located at bottom of body
-
Enables safe removal of debris and liquid prior to maintenance.
Basket Strainer Operating Principle
Flow enters the inlet side and passes through the perforated basket from inside to outside (or vice versa depending on design).
Solid particles larger than the defined perforation size are retained inside the basket.
Clean fluid exits through the outlet connection.
As debris accumulates, differential pressure increases. When pressure drop reaches operational limit, the basket must be removed and cleaned.
Basket Strainer Industries Applications
Manufactured basket strainers are supplied for:
-
Petrochemical plants
-
Refineries
-
Water treatment systems
-
Palm oil and sugar processing plants
-
Marine applications
-
Power generation facilities
The focus remains on durability, pressure integrity, and serviceability.
Basket Strainer Specification
Correct specification determines performance. The following data must be defined before selection:
- Line size (DN / NPS)
- Flange standard (ANSI / DIN / JIS)
- Pressure class
- Design pressure and temperature
- Body material
- Filtration size (perforation diameter or mesh rating).
Advantages of Basket Strainers
-
Simple mechanical design
-
Large dirt holding capacity
-
Easy basket removal
-
Suitable for high flow applications
-
Structurally robust when properly fabricated.
BB STEEL INTERNATIONNAL
Basket Strainer Manufacturer in Thailand
BB STEEL INTERNATIONNAL is a Thailand-based manufacturer specializing in fabricated steel products for industrial piping systems, including basket strainers.
Manufacturing Capabilities
-
Carbon steel and stainless steel fabrication
-
Custom dimensional production
-
Flanged connection manufacturing (ANSI / DIN / JIS compatibility)
-
Machined gasket seating surfaces
-
Reinforced internal basket construction
Production Control
-
Controlled welding procedures
-
Dimensional verification before dispatch
-
Pressure testing prior to delivery
The objective is structural reliability — not catalogue distribution.
Custom Manufacturing Support
BB STEEL INTERNATIONNAL supports project-based fabrication including:
-
Non-standard body dimensions
-
Custom basket perforation sizes
-
Modified nozzle orientation
-
Project quantity production
Each unit is manufactured according to defined process conditions provided by the client.
Technical Data Required for Ordering
Before requesting quotation, prepare the following:
-
Line size
-
Flange standard and pressure class
-
Design pressure
-
Design temperature
-
Body material
-
Filtration size (perforation or mesh)
-
Drain / vent requirement
-
Coating specification
-
Testing requirement
-
Quantity and spare basket requirement
Incomplete data leads to incorrect quotation.
